Diagnostic Motherboard Test Card Kit Computer Post Test Analyzer Laptop PC Motherboard Analyzer Kit Motherboard Analyzer Adapter Card

Price: $54.58
(as of Feb 17, 2025 15:59:47 UTC – Details)

Product Description

Features

Kit Contents: Laptop motherboard analyzer card kit has 1 diagnostic card, 1 connecting wire, 1 terminal, 1 adapter card, 1 terminal wire, 2 flat cable.

Compatible Ability: The laptop motherboard analyzer card supports PCI E, mini PCI E, LPC. All PCI slots are supported.

Simple and Easy to Use: Motherboard analyzer diagnostic card has high recognition rate, automatic recognition of power module.

Suitable Items: Motherboard analyzer diagnostic card kit is suitable for ASUS, for Ggigabyte, for MSI, for ASRock, etc.

Versatile: Motherboard analyzer diagnostic card can detect multi channel and multi LED indicators, and can display the status of power supply, motherboard, PCUs, memory, video card and hard disk.

Instructions for use:

The non positioning socket of the conversion card is inserted into the non positioning plug, and the positioning socket is inserted into the positioning plug. If it is inserted incorrectly, the interface will be broken.

Package List

1 x Diagnostic Card

1 x Connecting Wire

1 x Terminal

1 x Adapter Card

1 x Terminal Wire

2 x Flat Cable

Specification

Item Type: Post Test Motherboard Analyzer Diagnostic Card

Color: Black

Interface: PCI E, LPC

Support: For ASUS, for Ggigabyte, for MSI, for ASRock, etc.

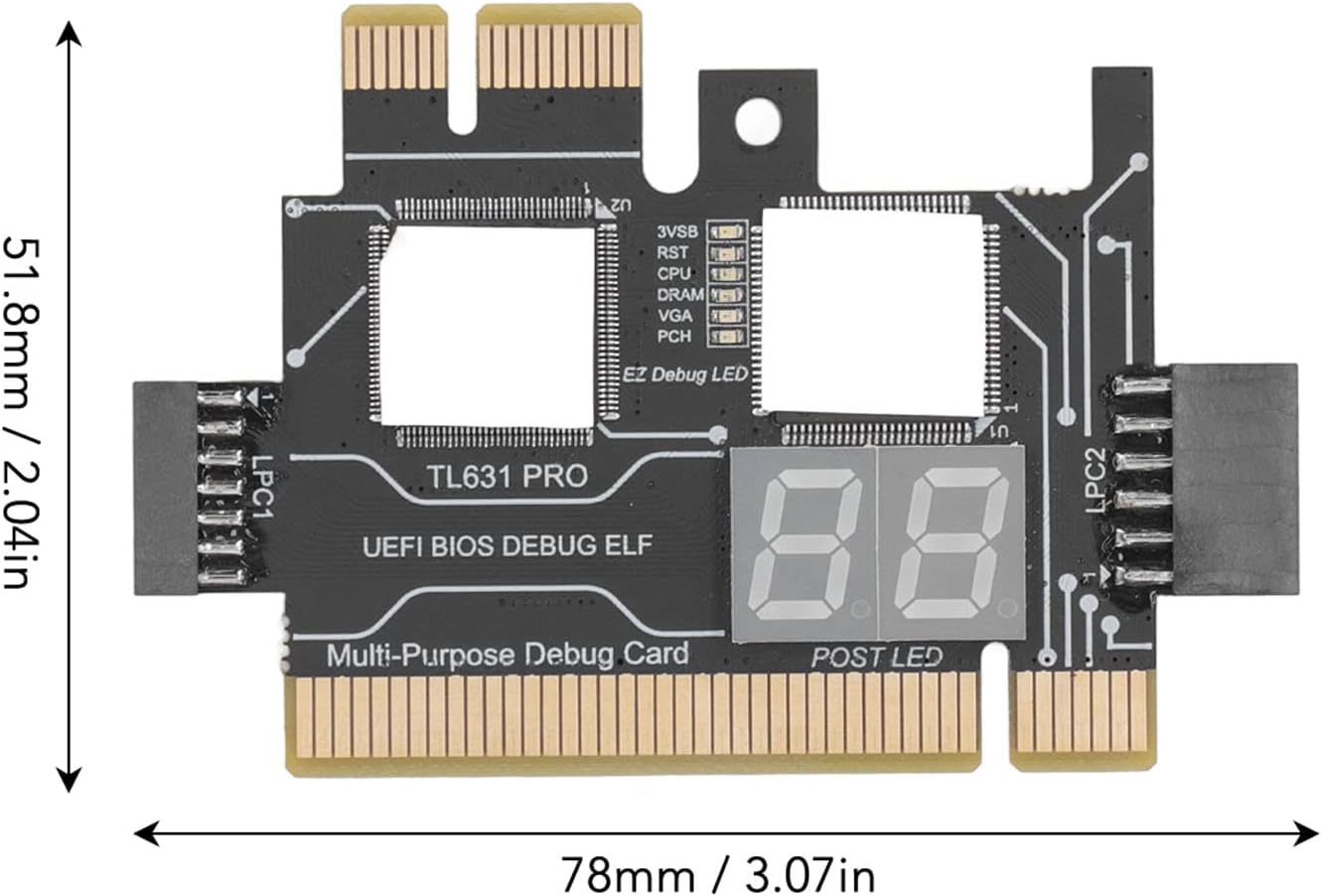

Size: 78 x 51.8mm / 3.07 x 2.04in

The diagnostic card has the following settings:

1. LPC1 shared high speed channel equals to connect to motherboard 2.0 small pin header plus MINI PCIE.

2. PCI High Speed Channel equals to support all PCI slots.

3. LPC2 shared high speed channel equals to connect to motherboard with 2.54 large pin header plus ultra mini SPI.

4. PCIEX1 high speed channel equals to be able to test gigabyte motherboard without PCI.

5. LPC3 shared high speed channel is equal to connect laptop for MINI PCIE, for A DEBUG converter card for ForASUS DEBUG CON, for EC DEBUG.

6. 3VSB power indicator, check if the power supply is normal.

7. MOBO motherboard indicator, check whether the motherboard is normal.

8. CPU indicator, for checking whether the CPU module is normal.

9. DRAM memory indicator, to check whether the memory module is normal.

10. VGA graphics card indicator, check whether the graphics module is normal.

11. PCH south bridge indicator, check whether the south bridge module is normal.

12. Portable round hole design, can be tied tightly with gold rope or key chain.

13. DP decimal point, CLK display.

Compatible Ability: The laptop motherboard analyzer card supports PCI E, mini PCI E, LPC. All PCI slots are supported.
Kit Contents: Laptop motherboard analyzer card kit has 1 diagnostic card, 1 connecting wire, 1 terminal, 1 adapter card, 1 terminal wire, 2 flat cable.
Versatile: Motherboard analyzer diagnostic card can detect multi channel and multi LED indicators, and can display the status of power supply, motherboard, PCUs, memory, video card and hard disk.
Simple and Easy to Use: Motherboard analyzer diagnostic card has high recognition rate, automatic recognition of power module.
Suitable Items: Motherboard analyzer diagnostic card kit is suitable for ASUS, for Ggigabyte, for , for ASRock, etc.
