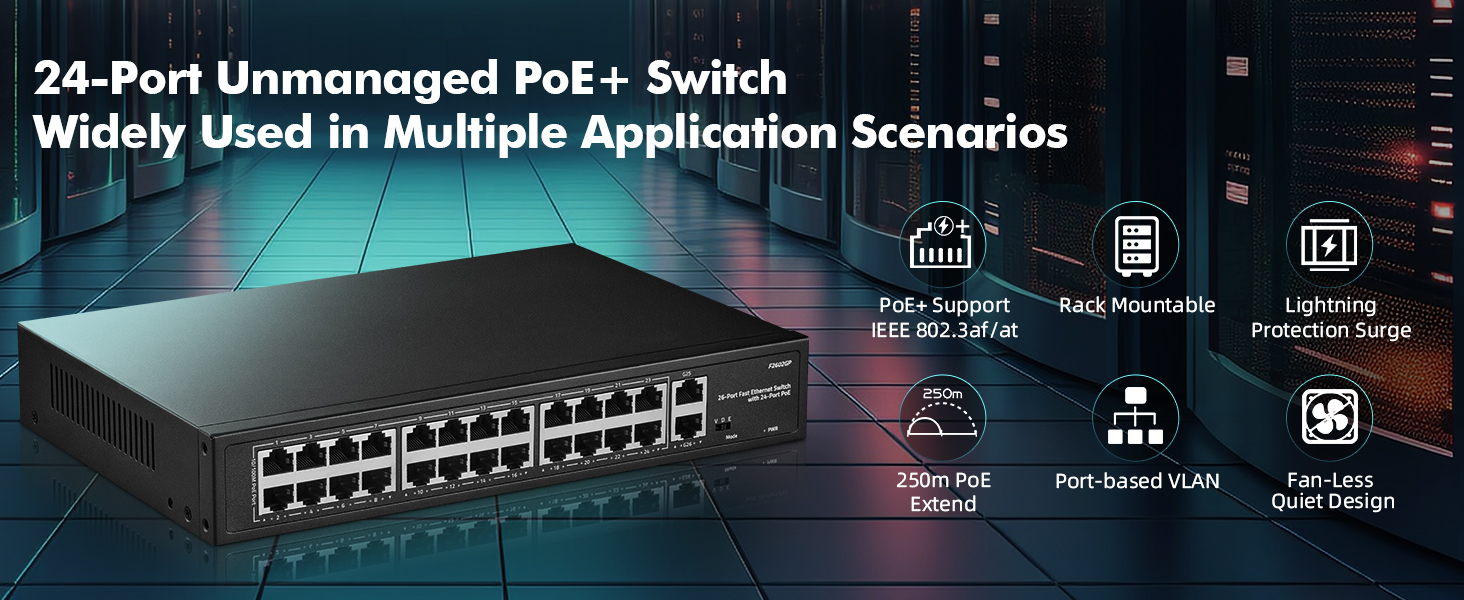

YuLinca 24 Port PoE Switch with 2 Gigabit Uplink, 100Mbps PoE+ Ports, 1000Mbps Uplink, IEEE802.3af/at, Max 300W, VLAN & PoE Extend 250m, RackMount Fanless Unmanaged Ethernet Switch

Price: $95.99
(as of Jan 30, 2025 23:04:38 UTC – Details)

Product Description

24-Port PoE+ Switch with 2 uplink ports is a flexible ethernet switch to transmit adequate power and safe reliable network for HD IP surveillance or WiFi system. the PoE port can automatically detect and supply receiving devices meeting IEEE802.3af/at standard.

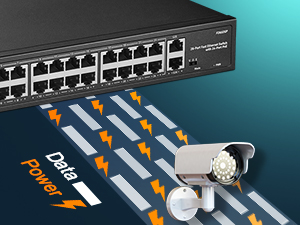

Automatic PoE detection

Compatible with IEEE802.3af/at standard, 30W Max. output power for one PoE port, automatic PoE detection on connected PoE devices.

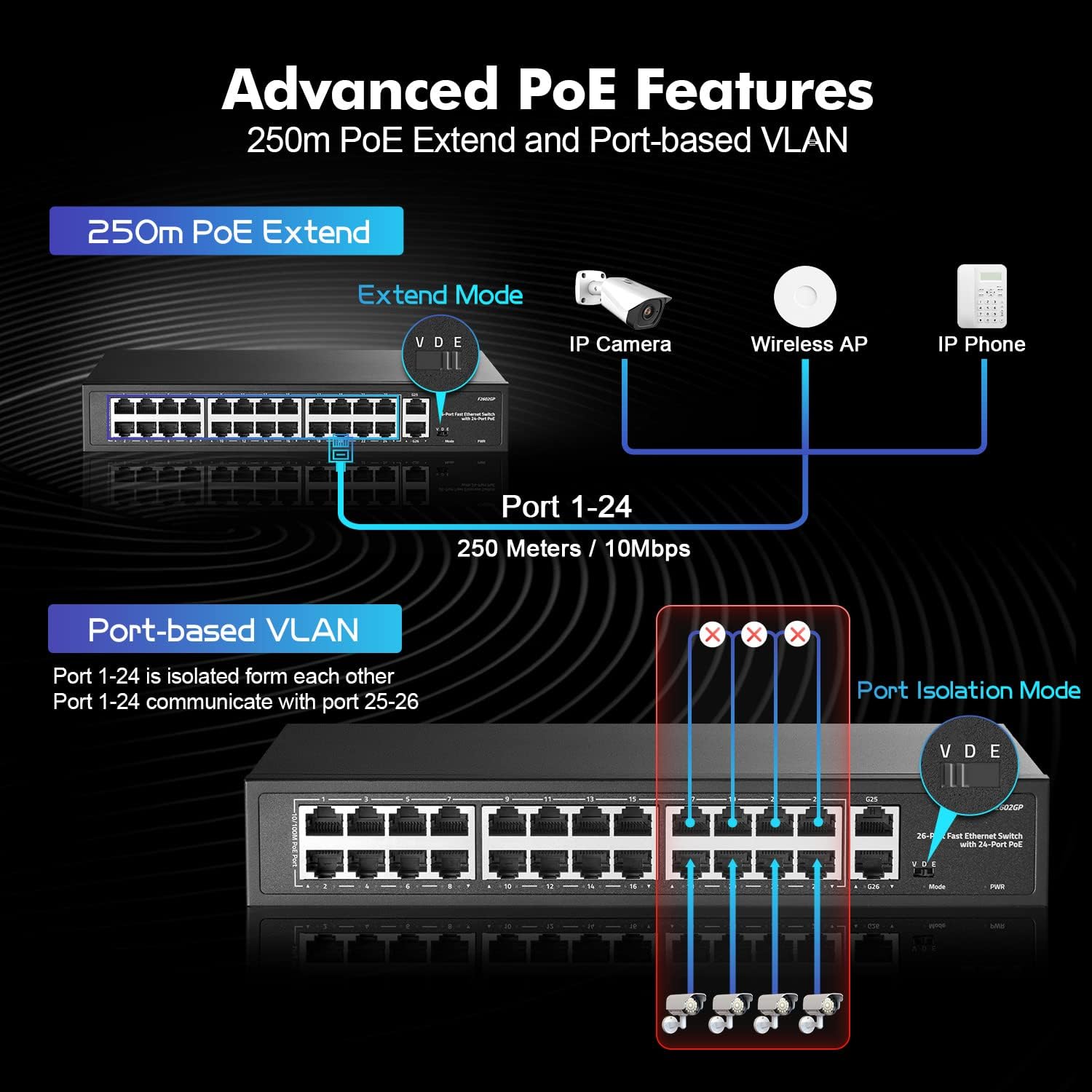

250m PoE Extend

PoE supply up to 250m with the DIP switch on ‘Extend’ mode(E), the PoE port speed downgrade to 10Mbps.

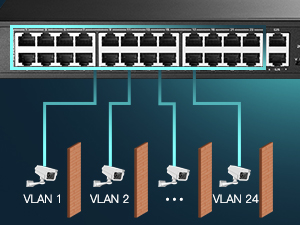

Port-based VLAN

With port isolation mode(V) easily divides traffic for ports 1-24 to prevent IP camera’s muliticast or broadcast storm from affecting each other.

Easy Installation

Plug and Play, unmanaged PoE switch built in power supply, no additional AC outlet required near the connected PDs.

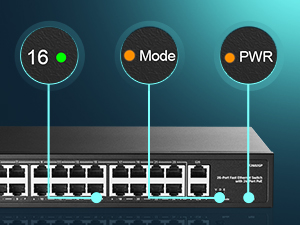

LED Indicators

Display the live status of the PoE switch with LED indicators, and give convenience to quick diagnose.

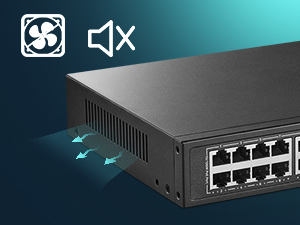

Fanless & Noiseless Design

Fanless design ensure noiseless operation without disruption your quiet home or office,and greater reliablity over time with fewer parts to fail.

Lighting Protection

Fetures with 4KV surge protection, the switch can adapt to harsh indoor or outdoor environment.

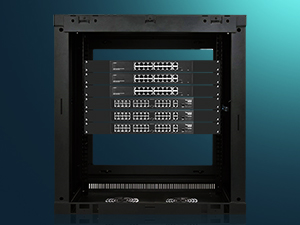

19” Rack-mount

The poe switch capable of being mounted in a 19 inch rack.Save your space and easy to manage.

Product Specifications

Model F2602GP Ethernet 24*10/100M PoE Port + 2*Gigabit uplink RJ45 Port Bandwidth 8.8 Gbps Packet Forwarding Rate 6.54Mpps MAC Address 2K Jumbo Frame 9216bytes Network Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x PoE Standard IEEE802.3af (15.4 W), IEEE802.3at (30 W) Optical Medium 10BASE-T: Cat 3、4、5 UTP(≤100 meter), 100BASE-TX: Cat5 or more UTP (≤100 meter), 1000Base-TX : Cat5 or more UTP/STP(≤100 meter) Working Environment Working Temperature：-10~50°C Storage Temperature：-40~70°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~90%，non-condensing Indicator PWR(POWER), Mode(DIP), 1-26 Green Light(Link&Data), PWR Lighting: Powered, Un-Light: No Power, Mode: Lighting: V(Port Isolation) Un-Light: D(Default mode) Flash: E(Extend), 1-26 Green: Lighting: Connecting, Un-Light: Disconnect, Flashing: Data Transmit DIP V(VLAN): Port isolation mode. In this mode, the PoE ports (1-24) of the switch cannot communicate with each other, and can only communicate with the UP-link port. D(Default) OFF: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100M adaptive. E(Extend Extend): Link extension mode, 1-24 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M Structure Size Product Dimensions: 268*181*44mm Package Dimensions：312*262*84mm Product N.W：1.44KG Product G.W：1.92KG Power AC 100~240V 50/60Hz 300W Package List Switch 1 pc, Power cord 1 pc, User manual 1 pc, Brackets 1 pair

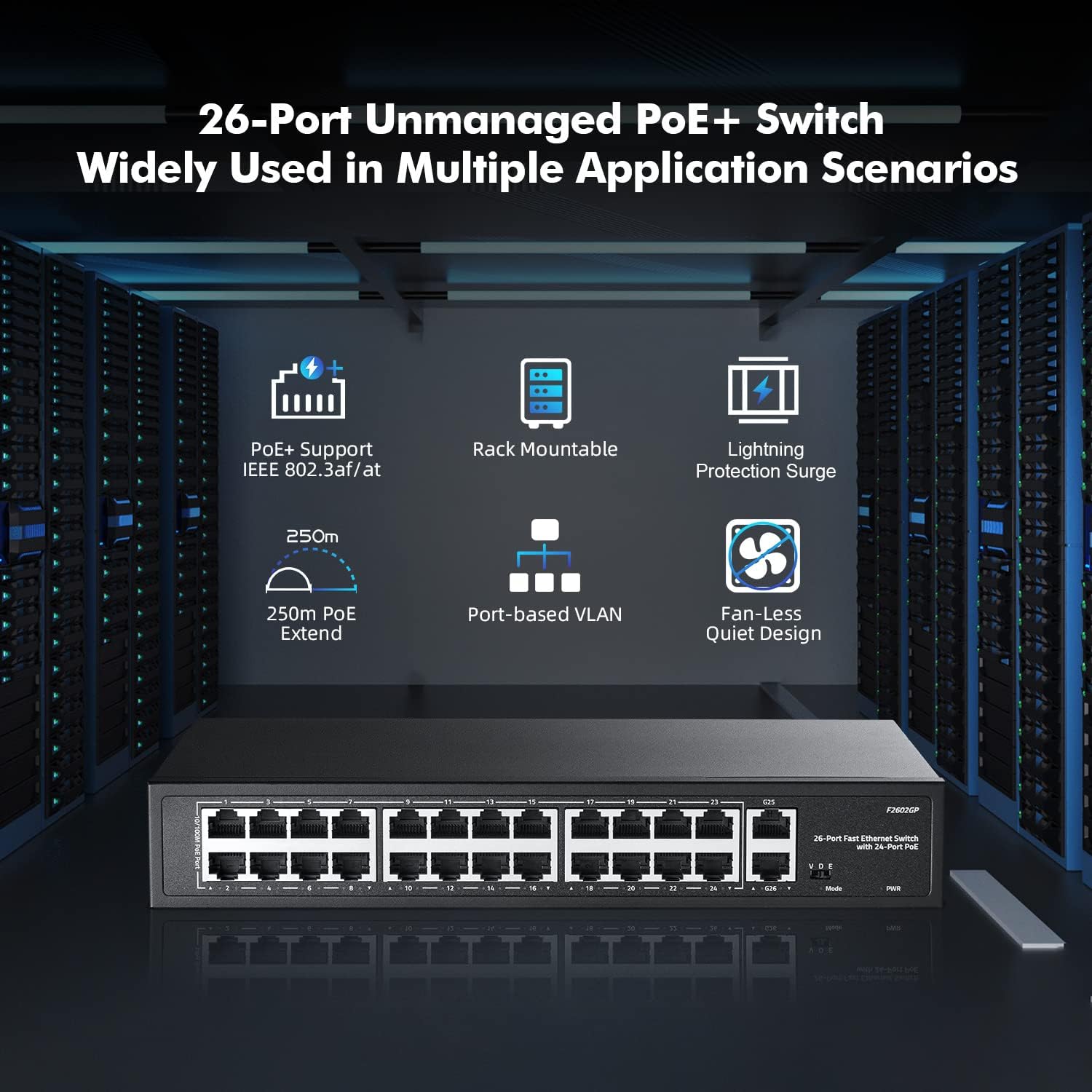

【26 Ports】This poe switch include 24 ports 10/100Mbps POE, 2 Gigabit Uplink(100/1000Mbps); Gigabit uplink ports can support higher aggregation rates, all pors supports port automatically adaptive.
【IEEE 802.3af/at PoE】PoE Ports 1-24 support ieee802.3af/at poe , max 30W; The whole machine output power is 300W. Output POE voltage 44~57V, typical value 48V. *Please note: it will not supply power to passive 24V PoE and NON-PoE devices.*
【Vlan Isolation & Extend Distance】Ports 1-24 support VLAN port isolation and cannot communicate with each other, only communicate with uplink port 25-26 port, which can reduce network congestion, improve performance and safety; ports 1-24 support POE distances up to 250 meters, the rate is 10Mbps.
【Unmanaged Plug and Play】Supports automatic detection of power supply for POE devices, built-in power module, just connect the power cord, and connect to the device through the network cable, no other configuration is required, the LED indicator on the panel shows the status, the use and maintenance are very simple.
【Widely Used】 Metal case, fanless silent, double side vents; with hanging ears, support desktop/wall/rackmount install. Stable POE and switching chips, can be used in various networks of home,office and business, including computer internet, security monitoring, wireless coverage, transmission access of multiple devices, etc.
